nlmixr2 4.0
By Matthew Fidler in nlmixr2
July 16, 2025
nlmixr2 4.0
We at the nlmixr2 team are committed to quality results. This is
seen in line with our vision:
The vision of nlmixr2 is to develop a R-based open-source nonlinear mixed-effects modeling software package that can compete with commercial pharmacometric tools and is suitable for regulatory submissions.
This release furthers the quality by changing linear compartment
models the ADVAN
solutions to the WNL
solutions(both claim to be something that NONMEM is using for the
linear solved systems).
We also added a few new features to the linear compartment solutions too.
However, since this is a change to the type of linear compartment solutions, this is a breaking change so it is a new major release.
There are other features that may be of interest (you will see a
different loading with nlmixr2), but we will cover them at a later
time.
Why a new set of linear compartment solutions
The ADVAN compartment solutions we were using are an excellent linear compartment solution that takes the last value of all the compartments solved to determine the next value of each compartment (i.e. not the super-positioning solutions I learned in graduate school). This should allow time-varying covariates to be used correctly in linear compartment solutions.
To ensure the accuracy of these results we had 5,662 tests related to
the linear compartment solutions in rxode2.
Even with these tests passing, there were cases where the linear compartment solution did not seem to be performing well for optimization. Of course, this is concerning to us as a team and we set to fix this issue as soon as we found out.
Our hypothesis was that the strange results were due one of the following possibilities:
Floating point arithmetic error that added up over the many operations that were performed (especially when optimizing, when calculating the derivatives in automatic differentiation from STAN).
Some strange difference in event handling (since linear compartment events were handled differently than ODE events), that made these solutions inaccurate when fixes to the ode solving event handling was integrated (my guess is this is the culprit).
At the same time CRAN brought the following problems with the ADVAN linear compartment solutions to our attention:
- The linear compartment solutions caused the new Intel compilers to crash, meaning those people using the new Intel C compilers for the R distribution would not be able to run the linear compartment solutions.
- The linear compartment solutions (with AD) took too much memory and
CPU power for some of the CRAN maintainers to compile
rxode2
With these issues, we decided to look for another linear compartment
solution for inclusion in rxode2 and nlmixr2est.
WNL linear compartment solution in rxode2
After some searching, we found the WNL linear compartment solutions, which also took the last solution of the compartments to solve the current concentrations (also allowing time-varying covariates). In addition to what was described in the paper, we modified this to allow:
Infusions into the depot compartment (as well as the central). The math derivation is included in the code
Exact steady state solutions (as derived by the ADVAN solutions, not included in their paper)
There are also other changes that you may observe:
Whenever a linear compartment solution is used i.e.
cp <- linCmt(), you may access any of the compartments that would be defined by the corresponding ODE by name, that is:depot,central,peripheral1andperipheral2for use in your model. (This is a breaking change if you used these names in your model)You can also dose the
peripheral1andperipharal2compartment (as long as those doses are not infusion doses).Solving
linCmt()is now threaded when solving withrxSolve()or optimizing with"saem", meaning it may speed up your solutions. (We found the AD fromstanto cause R crashes with threading, so"focei"and any other gradient methods will not be run in parallel)The
ADgradients from Stan included inlinCmt()will only calculate based on the derivatives you need (i.e. if you only have anetaonClin “focei”, only derivatives related to that parameter will be calculated). This actually saves a little time if you are not using a model with multipleetas.
Changes you may not see, but should help in stability:
The linear compartment solutions are no longer separated into
ADderivatives and linear compartment solutions without derivatives. They are defined by the exact same code and realized with C++’s templates.The event handling for
rxode2is no longer any different between linear compartment solutions and ODEs.More tests for the accuracy of the linear compartment solutions were added (from 5,662 to 15,850 tests).
More robust validation and speed tests
focei tests
The focei routine has to figure out the linear compartment solution gradients. We tested the linear compartment solutions against the subset of linear comparment solutions found in our comparison paper.
In this release the default gradient method is the automatic differentiation of the linear compartment solutions from stan:

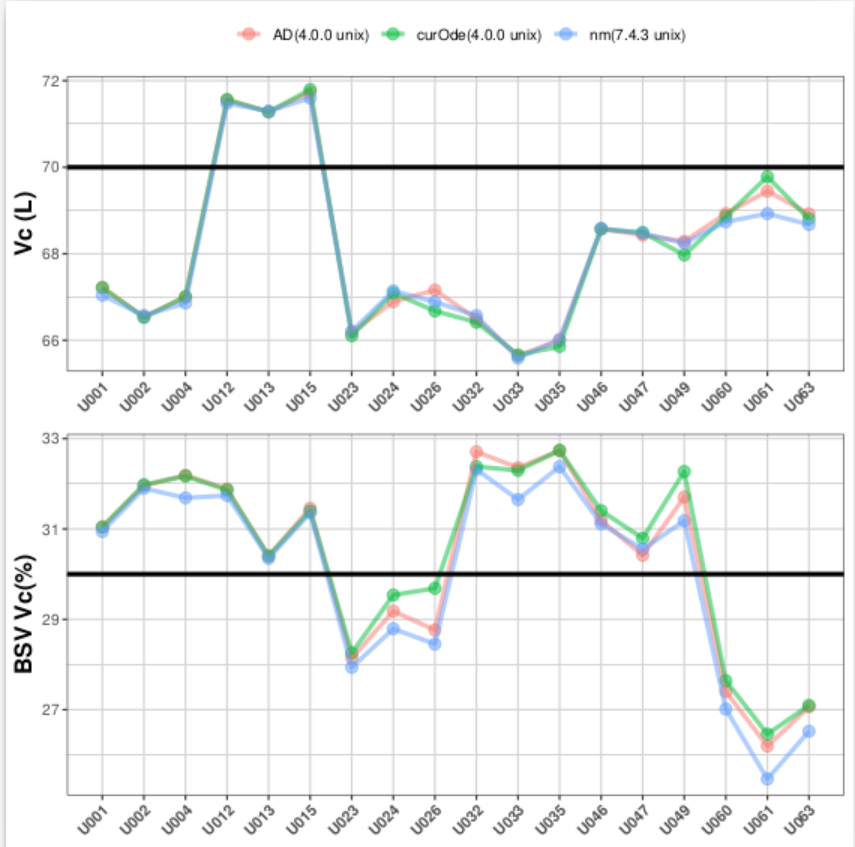

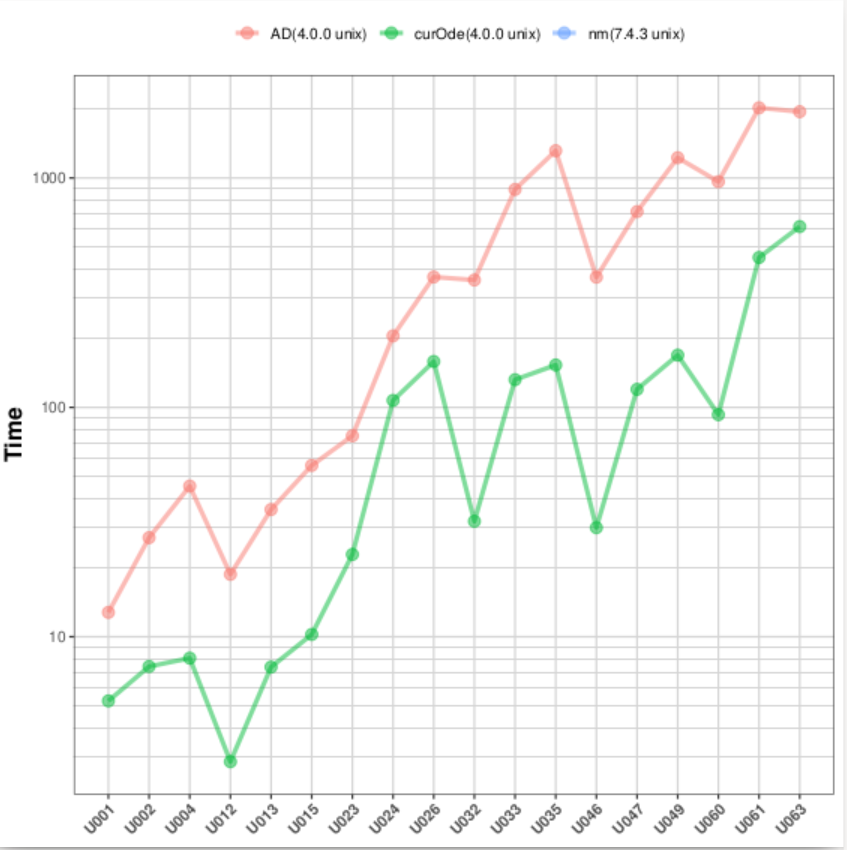

These solutions matched, which is great. However, they are slower than ODE solving with sensitivities.

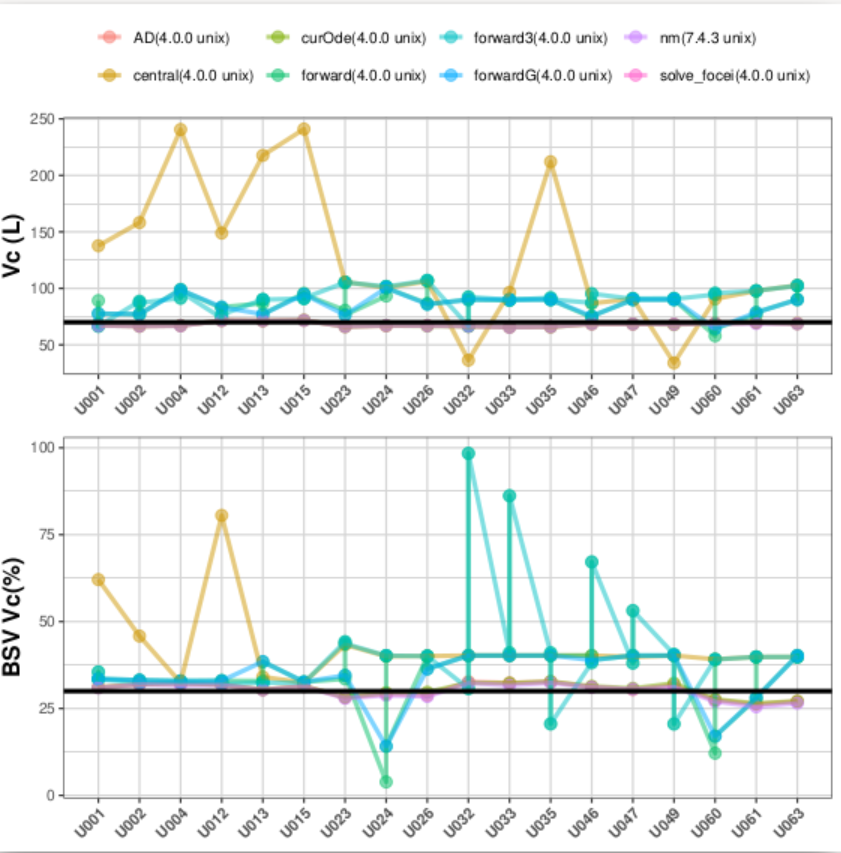

Because of this, we tried many different type of finite differences, which give inaccurate results (especially the central difference):

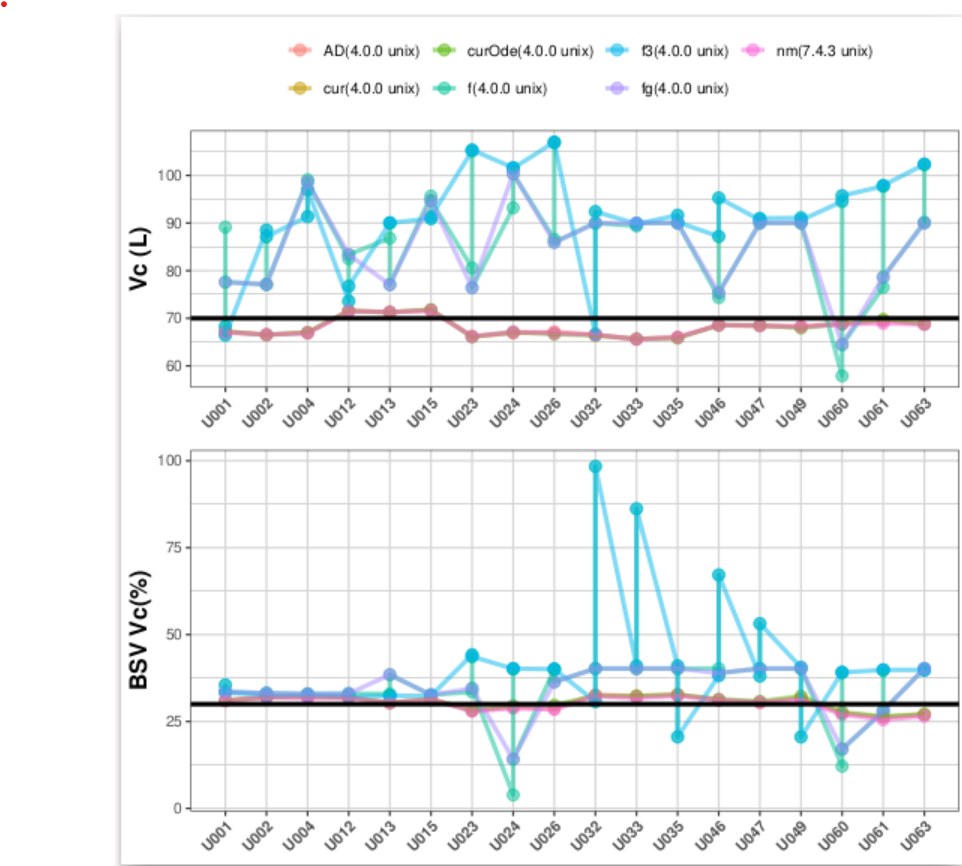

Even removing the central difference, there is inaccurate results with the various types of finite differences:

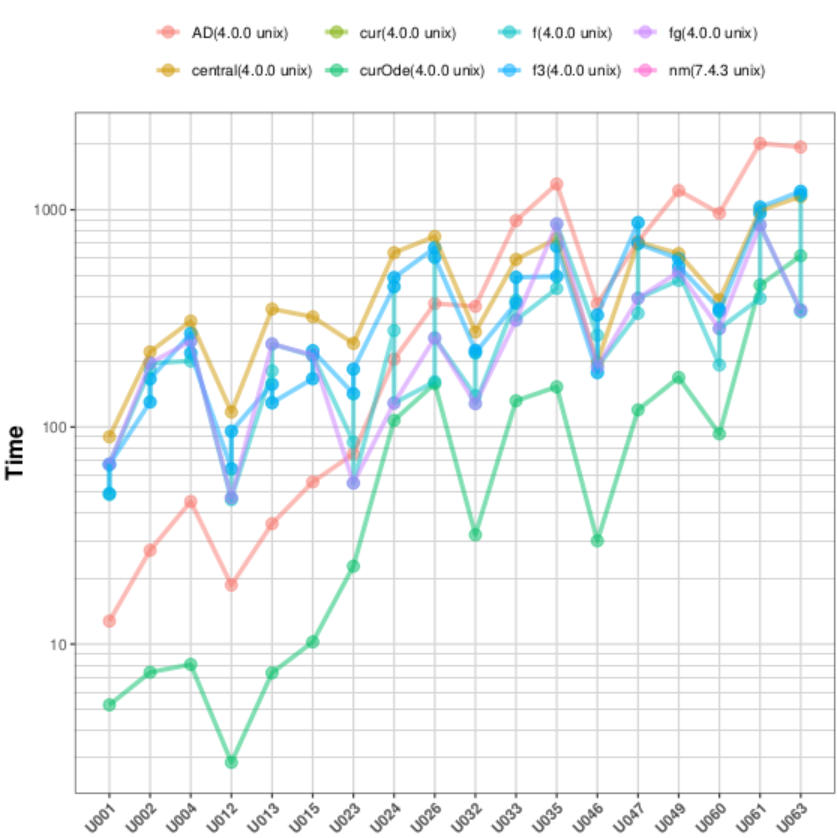

While calculating one gradient is faster with numeric differentiation, the optimization is actually slower with this approach:
Of course I attempted to see where the bottle-neck for the optimization speed is using a code profiling tool, and it turns the functions with the most time spent in them are:
| Percent Time | Function |
|---|---|
| 14.0% | dl_update_slotinfo (update/manage storage) |
| 8.8% | tls_get_addr thread local storage |
| 7.3% | update_get_addr (get memory address) |
| 1.8% | linCmtB (from rxode2) |
| 1.8% | AD multiplication * (from Stan) |
| 1.7% | vari_value (from Stan) |
| 1.6% | grad (from Stan) |
| 1.0% | dense_assignment_loop (from Eigen) |
So, most of the time in the AD linear compartment solutions are
looking up the memory address of values! So, at this point, I don’t
think there is much I can do to optimize the WNL linear-compartment
AD solutions further.
On the other hand, if, the advan solutions got corrupted due to
differences in event handling, perhaps going back to these solutions
(with the new event handling rewrite) will speed up the linear
compartment solutions more.
All these optimizations made me wonder how we compare to NONMEM; I
took some time and ran NONMEM solved and ODE systems to compare to
nlmixr2 solved systems:

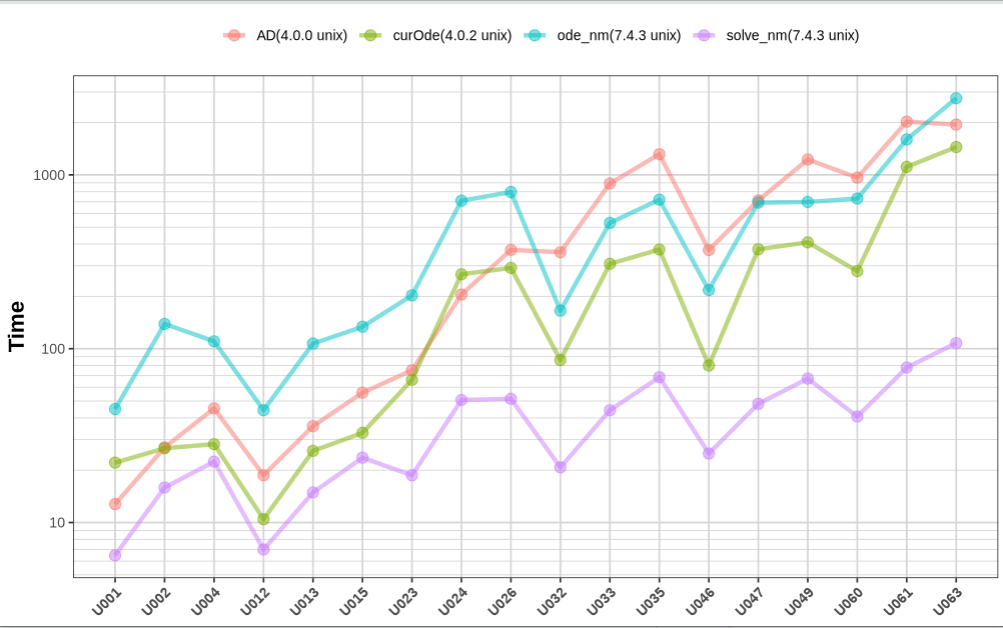

This shows for focei:
nlmixr2’s one compartment solutions are faster thanNONMEM’s ODEsnlmixr2’s two compartment solutions are similar speed asNONMEM’s ODEsnlmixr2’s ODEs are faster thanNONMEM’s ODEs (as previously reported)NONMEM’s solved systems are faster thannlmixr2
Note these are timings are different when solving with saem or for
solving in general.
This means, the linear compartment solution we have for focei (and
possibly saem) will likely be adjusted further in the future to give
better speed.
I decided to make this change now because it gives the correct
solution in the cases where linear compartment solutions were not
working. In the future, we hope to come back to the linear compartment
solutions and provide a faster solution for the focei case. (At the
very least maybe switch to the ODE solutions in 2+ compartments).
saem tests
The saem routine only uses the non-gradient solutions; We tested the linear compartment solutions against the subset of linear compartment solutions found in our comparison paper.
We will focus on the volume compartment comparison since all models have this in common:

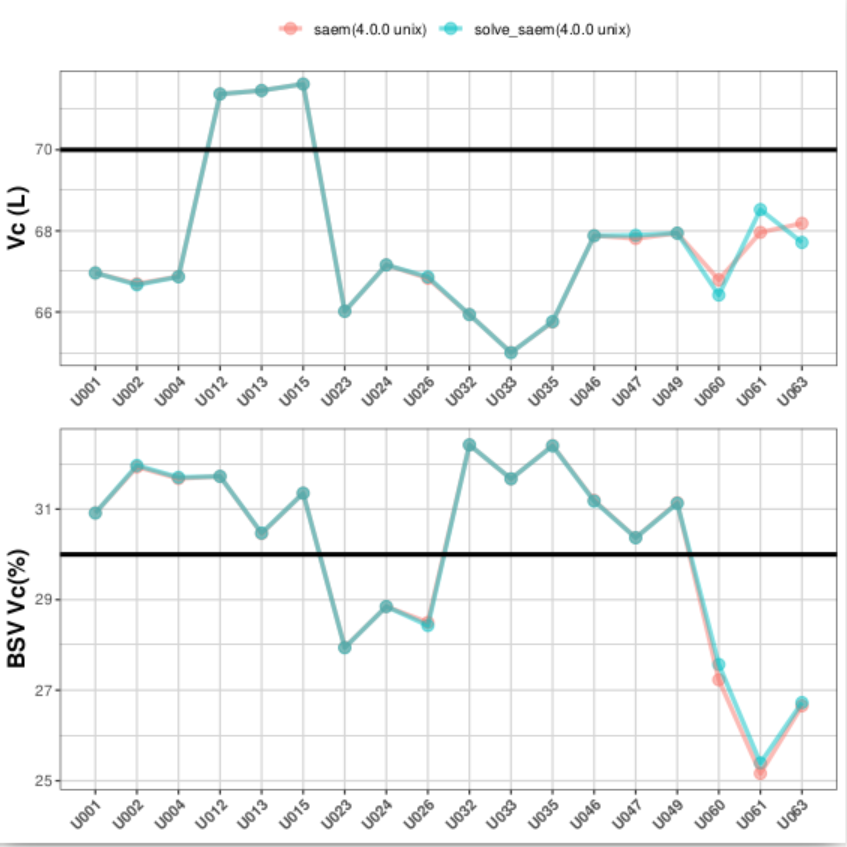

You can see the solutions between ODEs and linear compartment solutions are almost identical.

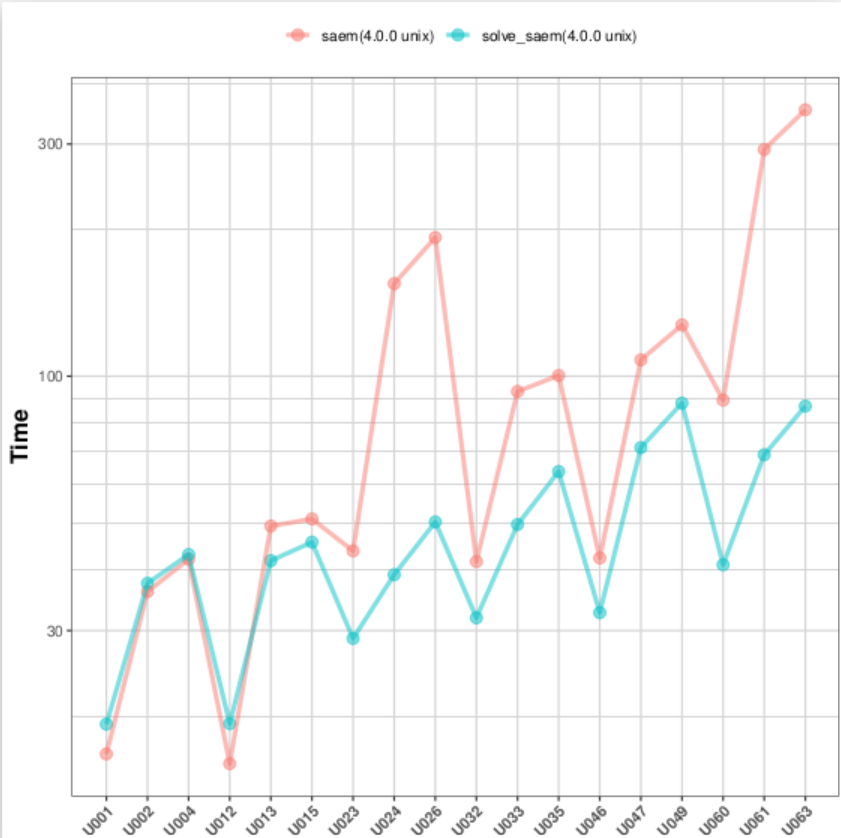

Also the speed of linear compartment solutions in saem is faster
than the ode solution:
Unlike focei, I didn’t explore anything else since this is what I
expected.
